Programable 360° Uniform UV Curing Chamber

The most powerful, portable and professional UV curing lamp for different surfaces efficient repair

1
2
3
GN-UVCX200200-2F
1

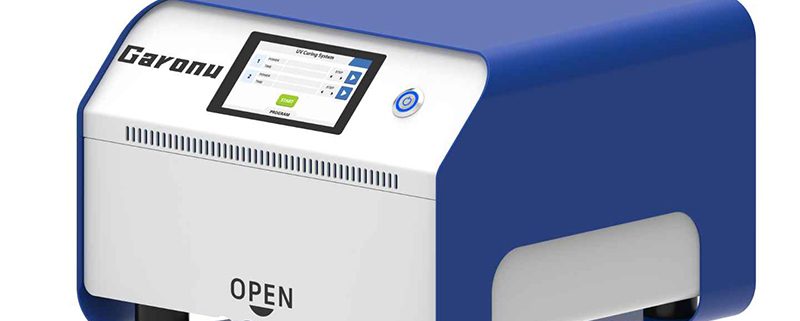

Touchscreen

2

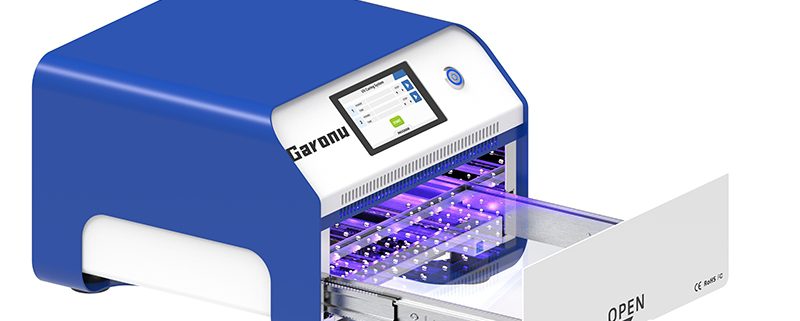

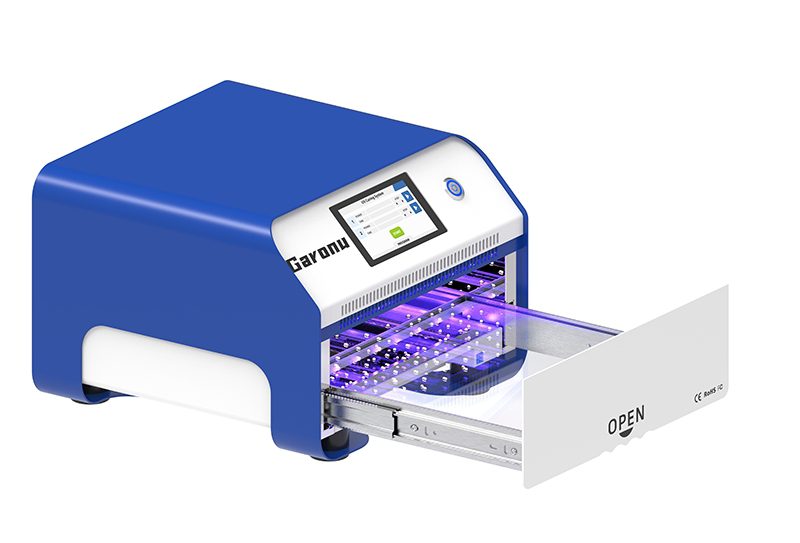

Slide-Out UV Curing Equipment

3

Large Quartz Tray

Product Introduction

Overcome the limitations of standard post-curing. Our advanced curing chamber delivers uniform, high-intensity curing for the widest array of 3D printing resins, all with unprecedented control.

Engineered for professionals who demand excellence, consistency, and efficiency in post-processing for prototyping, manufacturing, and research.

Program Your Process. Perfect Every Part.

Technical Specifications

ModelGN-UVCX200200-2F UV Lamp Type UV LED Arrays
Wavelength365nm/395nm/405nm are optionalHeight(From Led to Tray)58mm
Chamber Dimensions250×250×300mmCuring Area200×200mm
Timer Range1-999 secondsPower Range1-100%
Tray250×250mmVoltageAC110V/220V 50/60Hz

Features

Android Android

Programable Curing Process

  • Flexible curing process: 5-inch Industrial HMI Panel with real-time curing parameters visualization
  • Save up to 12 custom programs and 6 stages (e.g. “Dental mold – 60% Power/5s”-50% Power/10s-80% Power/5s …)
  • Curing Adjustment: Power: 1%-100% control, Time: 1s-999s
  • Profile Memory and Quick Recall: Store frequent-used settings (e.g. “Silicone Molding – Program #3”)

360° Curing Chamber and High-transparency Glass Tray Design

  • 360° omnidirectional reflective chamber ensures consistent UV exposure from every angle, eliminating curing shadows.
  • High-transparency glass tray maximizes UV penetration, enabling deeper and more effective light curing.
  • Ensures uniform curing results even for complex geometries, improving final product stability and strength.
Infinity Infinity

Wide Application Compatibility

  • Ideal for: 3D-printed clear aligners｜Dental molds｜Ear molds｜UV resin mounting and micro-encapsulation
  • Suitable for laboratories, clinics, R&D centers, and small-batch production.
Cc-by Cc-by

Anti-Error Safety Design

  • Automatic UV power cut-off when the drawer is opened.
  • Ensures safe operation and prevents accidental UV exposure.
Thumbs-up Thumbs-up

Superior Surface Quality

  • Ensures glossy, smooth surface finishes with reduced tackiness.
  • Provides enhanced hardness and durability through deep, uniform curing.
  • Delivers consistent results with fewer surface defects.

The UV Curing Chamber is a professional 360° UV curing device designed with a drawer structure and dual-lamp illumination system. It delivers efficient, uniform, and stable curing results and is widely used in dental applications, 3D printing resins, industrial UV materials, and more.

Yes. The curing oven features a program saving and recall function:

  • Users can save different curing parameters (time, power, steps, etc.) for various UV materials.
  • Each saved program can be individually named for easy identification.
  • Programs can be recalled with one click, ensuring consistent results and improving workflow efficiency.

This function is particularly useful when working with multiple UV materials or repetitive curing processes.

The curing oven is compatible with a wide range of UV-curable materials such as:

  • Post-curing of 3D-printed clear aligners| Ear mold | Dental mold
  • UV adhesives, UV coatings, and varnishes
  • UV Resin Mounting
  • UV inks

Make sure the wavelength matches your material’s curing requirements.

Common wavelength options include 365nm / 385nm / 395nm / 405nm.

Customized mixed-wavelength configurations are also available upon request.

Professional-grade LEDs typically last 15,000–20,000 hours, depending on usage frequency and working environment.

Consider the following factors: Type of UV material｜UV materials thickness｜Recommended wavelength and intensity｜Desired curing speed

If unsure, please refer to your material’s datasheet or contact us for guidance.

Yes, we offer OEM/ODM customization, including:

  • Wavelength configuration
  • Chamber size
  • Lamp layout
  • Program functions

Feel free to share your requirements with us.

Please contact our sales team at sales@garonu.com for product details, pricing, and distributor policies.

We welcome partners from all countries and regions.
